Stab Resistant Material

 Anti-stab & Bullet-resistant Material






Anti-stab & Bullet-resistant Material



Bulletproof & stab resistant composite material


Our bulletproof & stab resistant composite material has been passed test of China GA141-2001 Level II & III, which protect against China 54style and 79style lead cores (equal to NIJ 0101.04 level IIIA .44), and GA68-2008, which is withstand 24J stab power. It also has been reach NIJ 0115.00 level I & II, which prevent against 24J & 36J, 33J & 50J.
Nowadays, soft anti-stab material is still one of the biggest difficulties in the world. With more and more violences, terrors happended in the world, soft vest that of bulletproof and stab-resistant performances has been the most popluar requiement for policemen, security officers, VIPs, military etc.
After hard works on researches and developments on the subject for over 2 years, we got excellent results today. Various testing results has been prooved that the material has higher porformance than similiar material of Dupont by features of excellent anti stab and bulletproof and comfortablity.
The apperance of FC-1 could be treated as a breakthrough on safty material field. It provides the possibility to offer the maximum safty to humanity, which is still a persecute of body armor experts whom have been strigging for thousand years.FC-1 may make the draeam come to reality. Because FC-1 successfully combines bulletproof & stab resistance & slash resisitance & anti trauma & softness into one, and gives the body armor designer and manufacturer more freedom to offer maximum safty service.
In China, with the help of FC-1, a new bulletproof and stab resistant vest has passed very strict and severe test and may come to service by China Police in 2010.

Property Comparison List



Bulletproof

Anti-stab

Anti-trauma

Comfortablity

Kelvar fabric

E

U

I

E

PE UD

E

U

I

E

FC-1

A

E

E

A

metel

U

E

E

A

E – Ecellent   A - Acceptable  I - Improving U - Unacceptable

NIJ 0115.00 Stab resistant protection level strike energies


Protection level

“E1” strike Energy
J     ft·Ibf

“E2” strike Energy
J    ft·Ibf

1

24±0.50       17.7±0.36

36±0.60       26.6±0.44

2

33±0.60       24.3±0.44

50±0.70       36.9±0.51

3

43±0.60       31.7±0.44

65±0.80       47.9±0.59

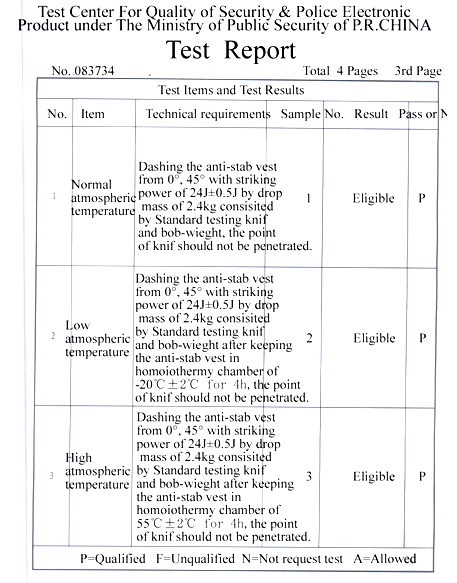

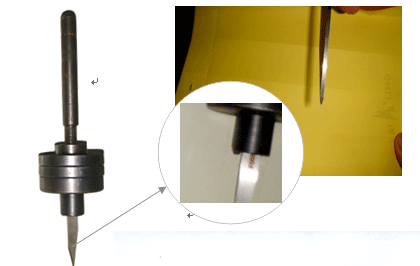

Testing equipment by GA68-2008
